KEYENC IG028 Laser Sensor IG-028

The KEYENCE IG-028 Laser Sensor (IG Series)

is a high-precision CCD-based laser micrometer designed for non-contact measurement and positioning in industrial automation systems. It uses a visible semiconductor laser (660 nm) combined with CCD detection technology to deliver accurate and stable measurements.

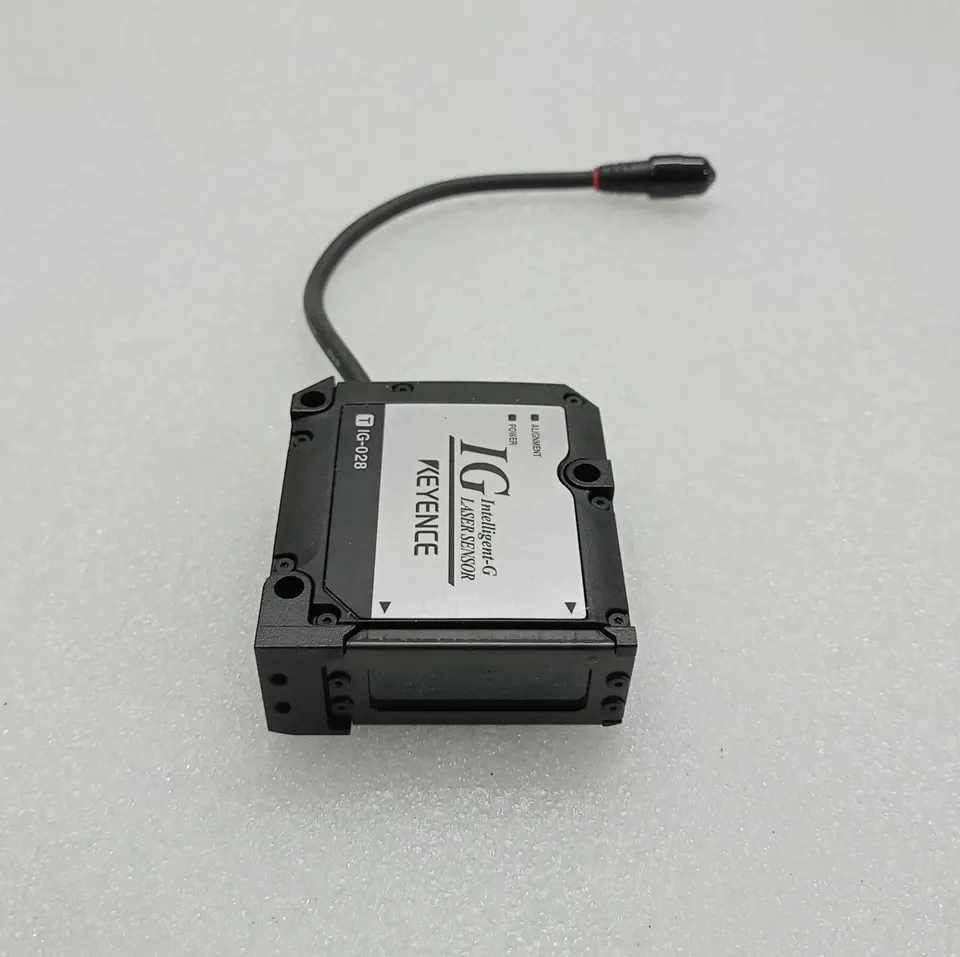

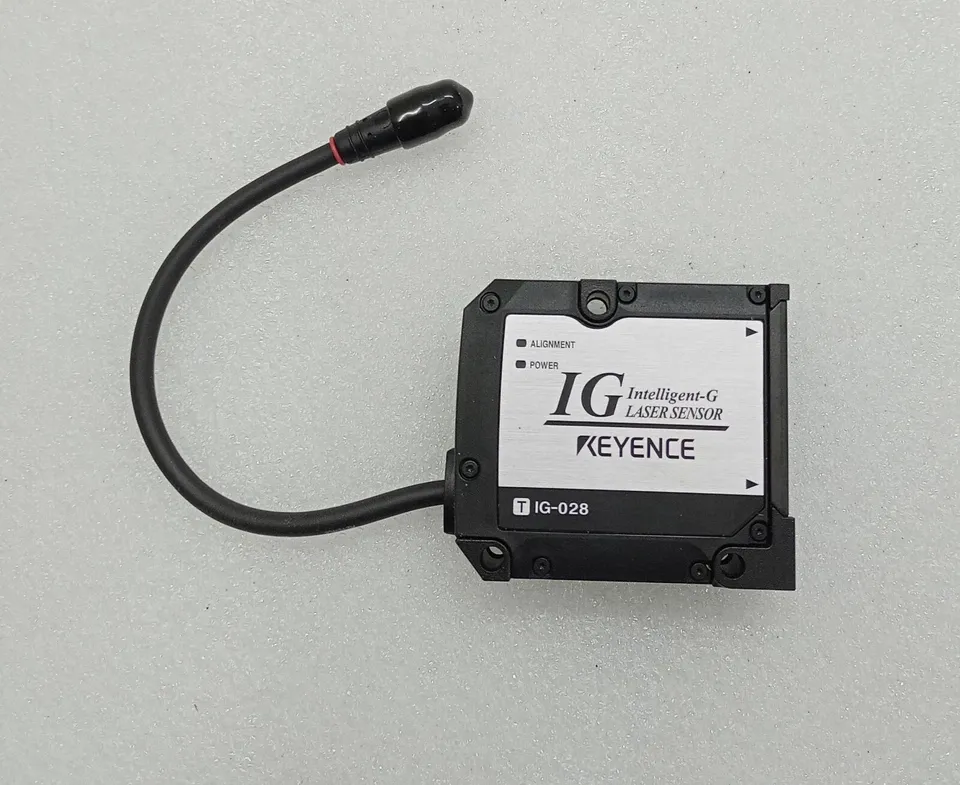

The IG-028 sensor head consists of a transmitter and receiver unit, forming a through-beam measurement system. When an object passes through the laser beam, the sensor detects its size, position, or presence with high accuracy.

It offers a measurement range of 28 mm and can be installed at distances up to 1500 mm, making it suitable for a wide variety of industrial measurement tasks. The sensor is capable of detecting very small objects (down to approx. 0.1 mm) and provides high repeatability (as low as 5 µm) depending on setup conditions.

With a fast sampling cycle (~980 µs), the IG-028 is ideal for high-speed production lines. Its rugged design with IP67 protection ensures reliable performance in harsh industrial environments.

? Key Features

• CCD-based laser micrometer technology
• Measurement range: 28 mm
• Detection capability: up to 0.1 mm object size
• High repeatability (up to 5 µm)
• Fast response time (~980 µs)
• Long mounting distance up to 1500 mm
• Through-beam transmitter/receiver design
• IP67 protection for industrial environments
• Visible Class 1 laser (safe operation)

⚙️ Applications

• Dimensional measurement of small parts
• Wire, tube, and edge detection
• Positioning and alignment systems
• Quality inspection in production lines
• Object detection in high-speed automation
• Glass, film, and sheet measurement

? Notes

• Model: IG-028
• Series: KEYENCE IG Series
• Laser Type: 660 nm visible semiconductor laser
• Measurement Principle: CCD optical micrometer
• Requires compatible controller/amplifier unit for operation
• Typically used in precision manufacturing environments

? Simple Explanation

? This sensor uses a laser beam to measure the size or position of objects very accurately without touching them.
