SAM Electronics Lyngso Marine BXM 2200 810.001.220-06
| Category | Marine Automation → Control and Monitoring Systems → I/O Modules → Binary Input and Relay Output Modules |
| Condition | used |
| Equipment Type | Binary Input and Relay Output Module (Marine Autom |
| Available | yes item in stock |
| SKU | z |

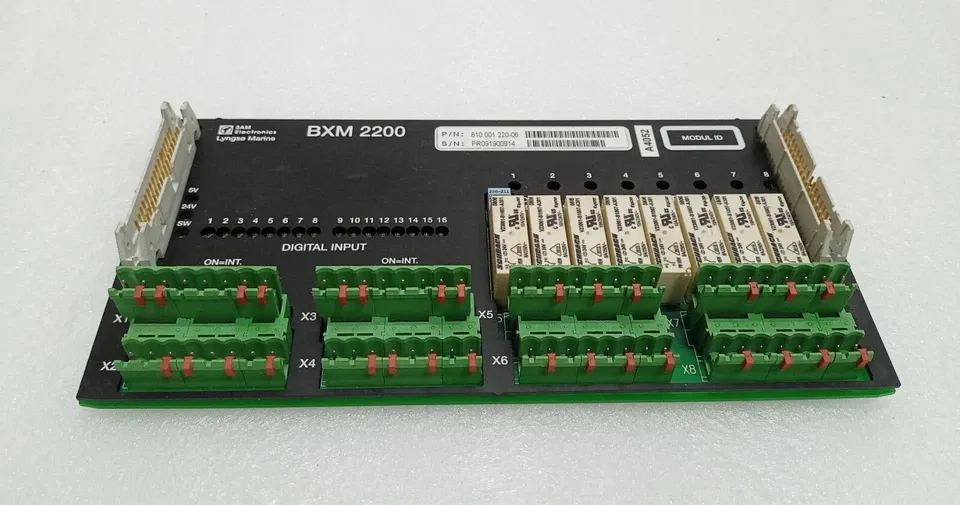

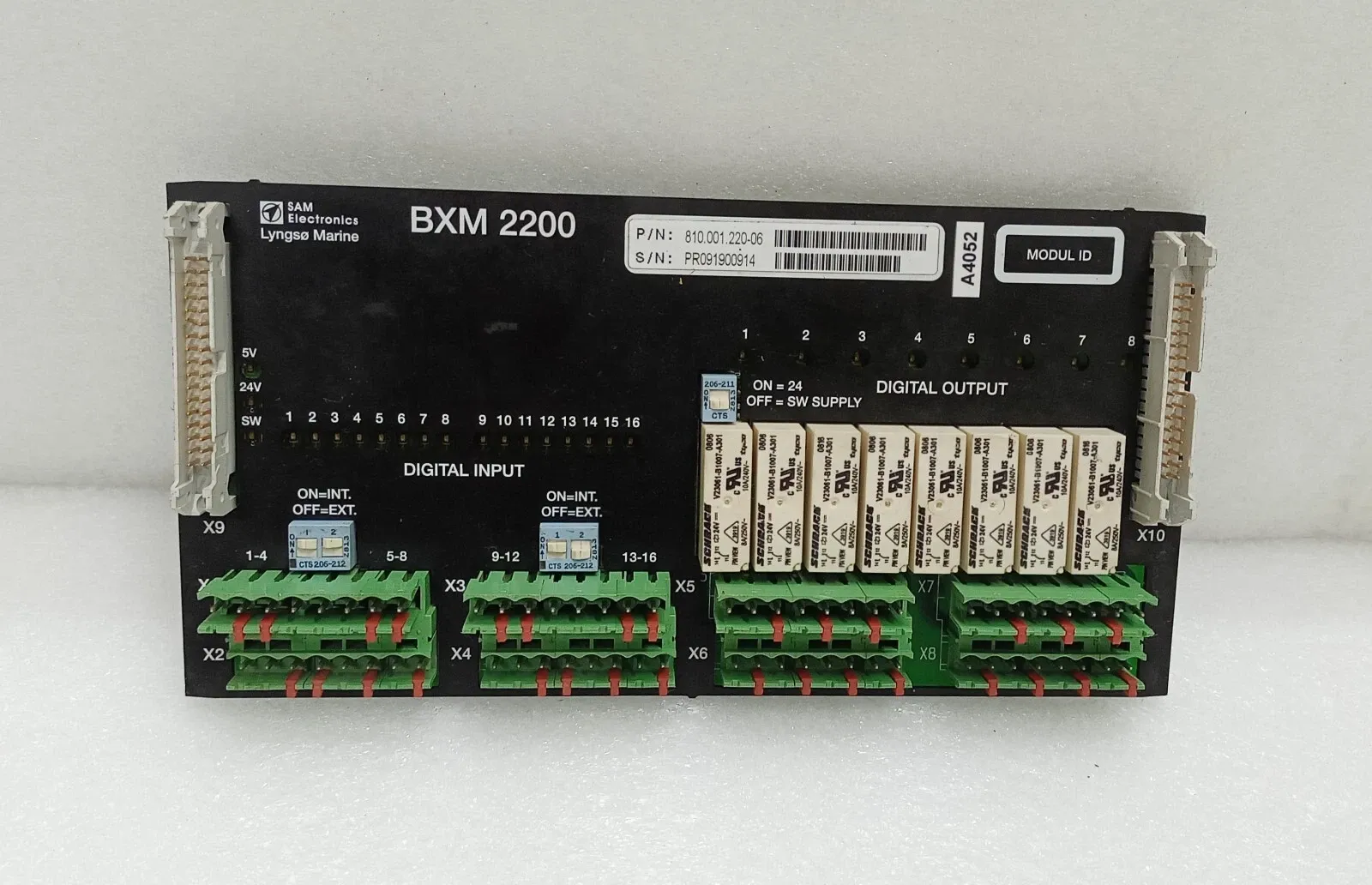

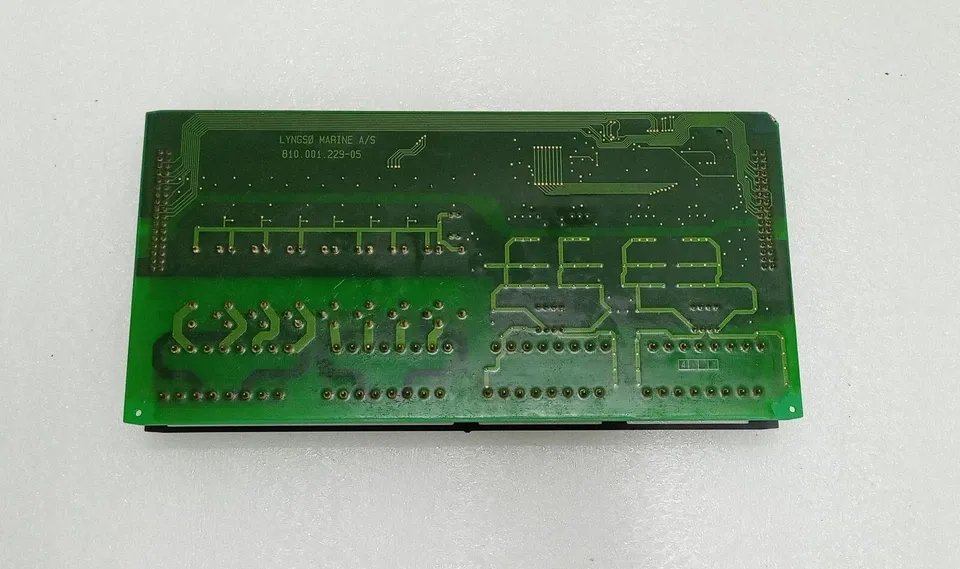

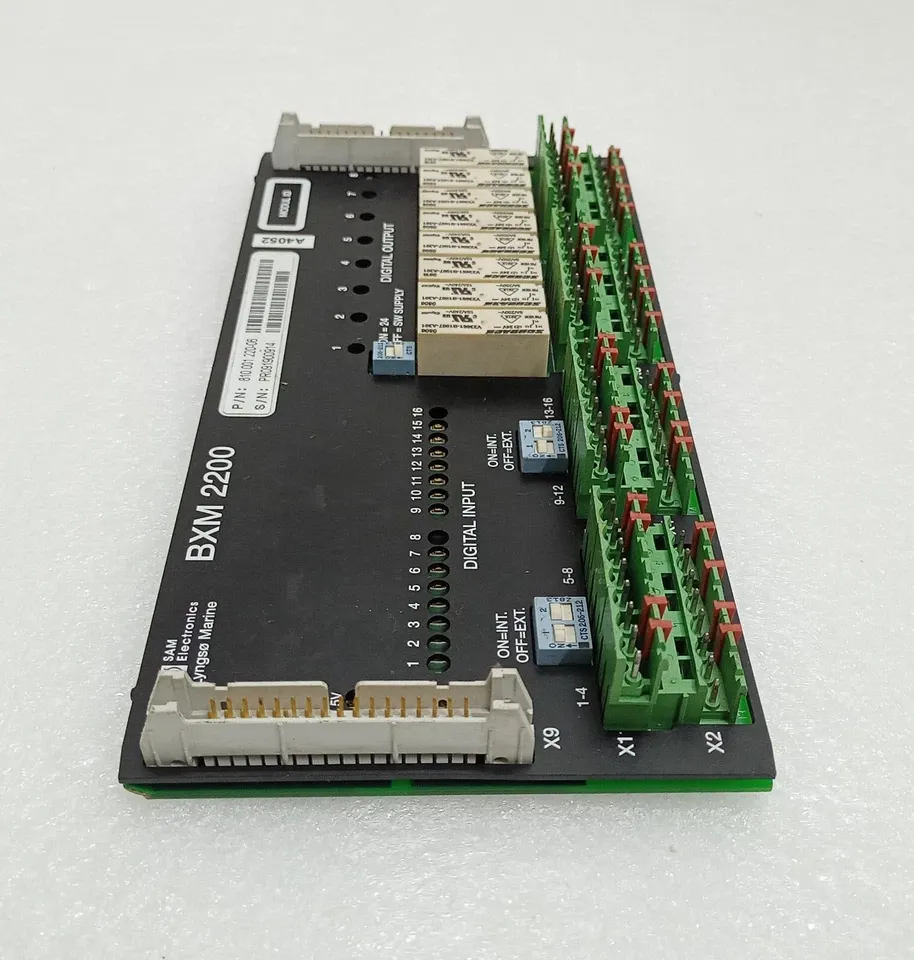

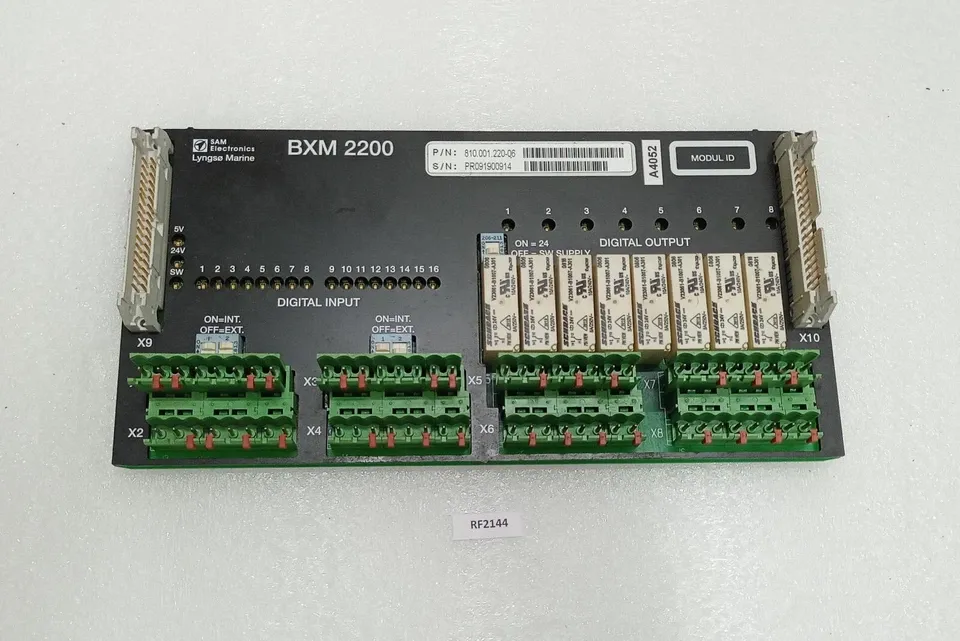

The SAM Electronics Lyngsø Marine BXM 2200 (Part Number: 810.001.220-06)
is a marine automation binary input and relay output module designed for integration into compatible shipboard control and monitoring systems. It provides a means of receiving discrete electrical signals from field devices and switching external circuits through relay contacts. The BXM 2200's technical documentation identifies it as a combined binary input and relay output module.
Manufactured for the SAM Electronics / Lyngsø Marine automation platform, the module is designed for modular installation alongside compatible interface and control equipment. Its binary inputs can monitor two-state signals, such as switch contacts and equipment status signals, while its relay outputs provide electrically switched contacts for compatible control circuits.
Technical specifications
The following specifications are documented for the BXM 2200, Type 810.001.220 family. The exact suffix variant, 810.001.220-06, should be checked against its applicable revision documentation before these values are used for installation or replacement.
Binary inputs: 16 channels, arranged in four isolated groups of four channels.
Relay outputs: 8 outputs with changeover contacts.
Binary input signal levels: LOW = 0–4 V; HIGH = 12–32 V; the range between these levels is undefined.
Relay contact ratings: 32 V DC at 6 A; 250 V AC at 6 A for resistive loads (power factor 1); 250 V AC at 1 A for a load with power factor 0.4.
Sensor supply: +24 V, with a documented maximum of 10 mA per channel.

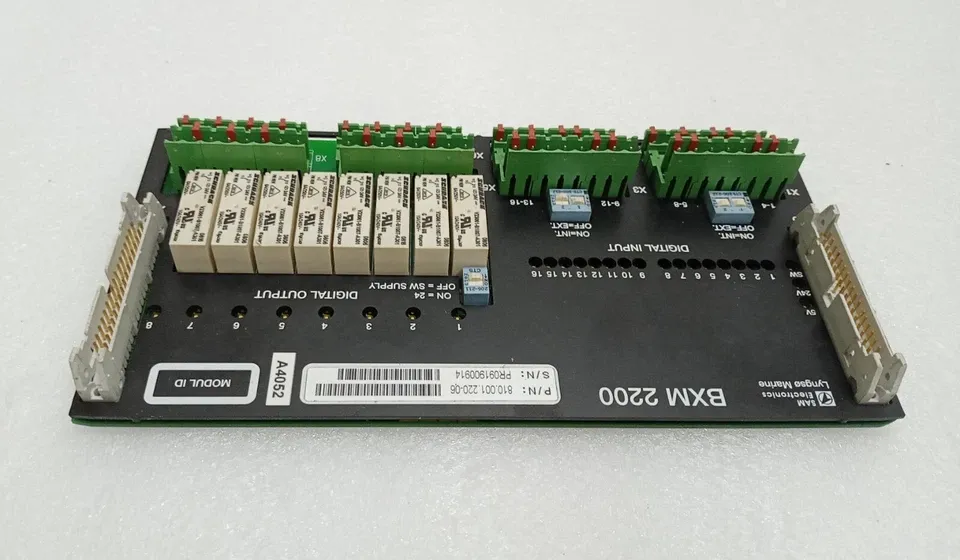

System connections: X1–X4 for binary inputs, X5–X8 for relay outputs, X9 for the digital bus connection, and X10 for module extension.
Mounting: Standard DIN rail.
Dimensions: Approximately 125.4 × 216 mm, with a height of 62 mm above the DIN rail.
Weight: Approximately 525 g.
Operating temperature: 0°C to 70°C.
Storage temperature: −25°C to 70°C.
Switch

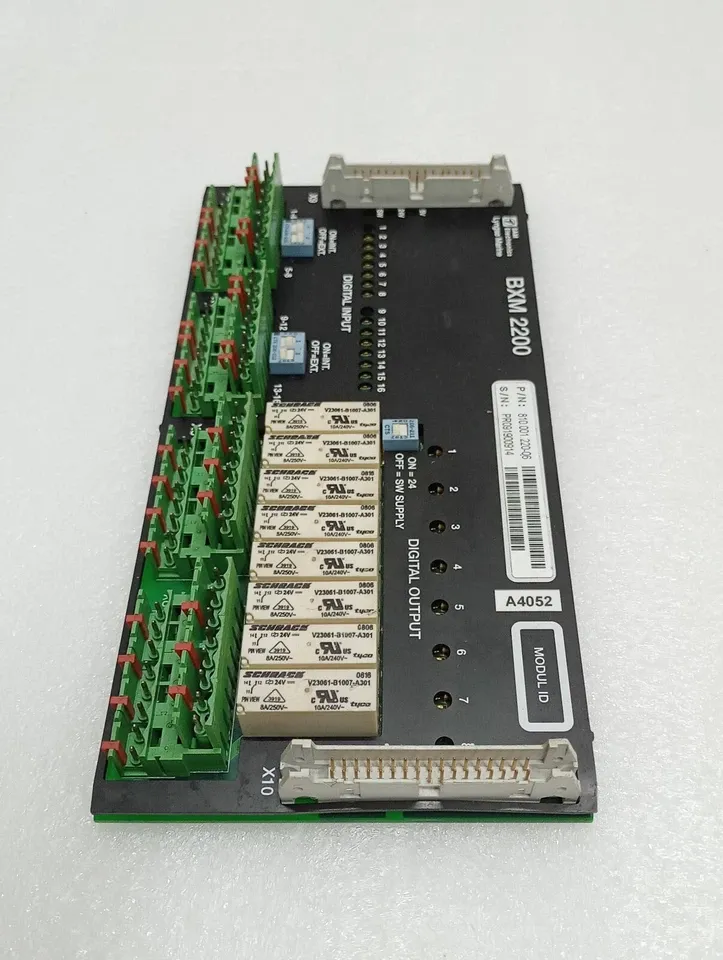

The module's documented design includes channel-status LEDs, power indicators and selectable internal or external sensor-voltage sourcing. Relay coil supply selection is also provided. These features help technicians monitor input states and relay operation during commissioning and maintenance.
The BXM 2200 is intended for use with compatible Lyngsø Marine interface equipment, including the IFM 2200 architecture described in its technical documentation. The documented architecture supports up to eight modules of this family in a compatible configuration. System-specific wiring, bus connections and module configuration must be checked before integration.
The module is relevant to shipboard automation applications where discrete equipment status signals must be monitored and relay-controlled circuits must be operated. The exact functions assigned to the inputs and outputs depend on the vessel's control-system design.
? Key Features
Combined binary input and relay output functionality.
16 binary input channels arranged in four groups.
Four groups of inputs with documented electrical isolation.
8 relay outputs with changeover contacts.
Supports documented binary input signals up to 32 V.
Relay contact ratings include 250 V AC at 6 A under the specified resistive-load conditions.
Dedicated digital bus and module-extension connections.
LED indicators for power and individual input/output channels.
DIN-rail mounting for modular control cabinet installation.
Designed for integration into compatible Lyngsø Marine automation systems.
Switch
⚙️ Applications
Shipboard automation and control systems.
Engine-room machinery status monitoring.
Monitoring of switches and discrete equipment signals.
Alarm and status acquisition systems.
Relay-based switching of compatible control circuits.
Auxiliary machinery control panels.
Vessel equipment monitoring and supervisory systems.
Marine electrical control cabinets.
Distributed input/output systems using compatible IFM 2200 interfaces.
Maintenance and replacement of existing Lyngsø Marine BXM 2200 installations.
These are applications of the documented module type and its capabilities; the specific vessel installation and assigned control functions should be confirmed from the system drawings.
